AP Water Softeners
For Wholesale Export Only
A complete softener set includes: Clack tank and Control, softener resin, internal distributor, tank jacket, brine tank with brine valve, well, grid and tubing.
| Softener Part Number |
Control Valve | Softener Tank |
Peak Flow GPM (LPM) |
Backwash GPM (LPM) |
Resin Volume cu.ft (lit) |
Grains | Brine Tank |
| APS-TC1044 | Clack WS1 TC |
10"x 44" | 10 (37.85) | 2.7 (10.2) | 1 (28.3) | 32,000 | 15" x 15" x 35" |
| APS-TC1252 | Clack WS1 TC |
12"x 52" | 18 (68.1) | 4.2 (15.8) | 2 (56.6) | 64,000 | 18"x 18" x 40" |
| APS-TC1354 | Clack WS1 TC |
13"x 54" | 22 (83.3) | 4.2 (15.8) | 2.5 (70.75) | 80,000 | 18"x 18" x 40" |
| APS-EI1044 | Clack WS1 EI w/meter |
10"x 44" | 10 (37.85) | 2.7 (10.2) | 1 (28.3) | 32,000 | 15" x 15" x 35" |
| APS-EI1252 | Clack WS1 EI w/meter |
12"x 52" | 18 (68.1) | 4.2 (15.8) | 2 (56.6) | 64,000 | 18"x 18" x 40" |
| APS-EI1354 | Clack WS1 EI w/meter |
13"x 54" | 22 (83.3) | 4.2 (15.8) | 2.5 (70.75 | 80,000 | 18"x 18" x 40" |

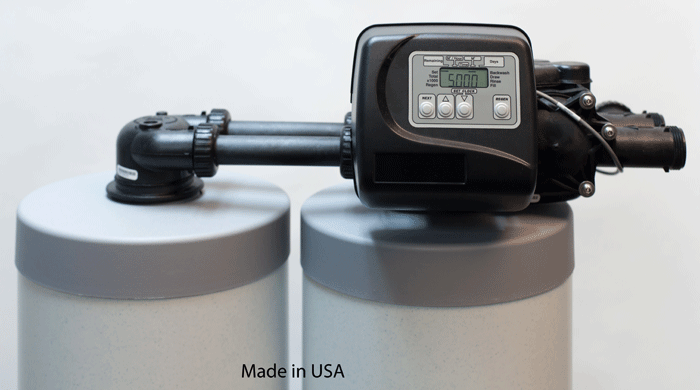

| APS-EIT1044 | Clack Duplex TT1 EI w/meter |
10"x 44" (2 each) |
10 (37.85) | 2.7 (10.2) | 1 (28.3) | 32,000 each | 15" x 15" x 35" |
| APS-EIT1252 | Clack Duplex TT1 EI w/meter |
12"x 52" (2 each) |
18 (68.1) | 4.2 (15.8) | 2 (56.6) | 64,000 each | 18"x 18" x 40" |
| APS-EIT1354 | Clack Duplex TT1 EI w/meter |
13"x 54" (2 each) |
22 (83.3) | 4.2 (15.8) | 2.5 (70.75) | 80,000 each | 18"x 18" x 40" |
| APS-CI1044 | Clack WS1 CI w/meter |
10"x 44" | 10 (37.85) | 2.7 (10.2) | 1 (28.3) | 34,000 | 15" x 15" x 35" |
| APS-CI1252 | Clack WS1 CI w/meter |
12"x 52" | 18 (68.1) | 4.2 (15.8) | 2 (56.6) | 64,000 | 18"x 18" x 40" |
| APS-CI1354 | Clack WS1 CI w/meter |
13"x 54" | 22 (83.3) | 4.2 (15.8) | 2.5 (70.75 | 80,000 | 18"x 18" x 40" |
| APS-CIT1044 | Clack Duplex TT1 CI w/meter |
10"x 44" (2 each) |
10 (37.85) | 2.7 (10.2) | 1 (28.3) | 32,000 each | 15" x 15" x 35" |
| APS-CIT1252 | Clack Duplex TT1 CI w/meter |
12"x 52" (2 each) |
18 (68.1) | 4.2 (15.8) | 2 (56.6) | 64,000 each | 18"x 18" x 40" |
| APS-CIT1354 | Clack Duplex TT1 CI w/meter |
13"x 54" (2 each) |
22 (83.3) | 4.2 (15.8) | 2.5 (70.75) | 80,000 each | 18"x 18" x 40" |
Actual flow rates depend on inlet water quality and outlet hardness required. Exchange capacities are based on 15lb/cu.ft (0.24kg/lit) salt. In/Out fitting, brine valve, well, and grid included. AC adapter 220-240V/12V European cord inculded. Bypass & No Hardwater valves are optional. Above data is for guidance only, application conditions may vary. Packaging: 9 units/pallet. Resin tank sizes up to 48" x 72" with 3" valves available. Contact factory for details.
